Locking it down fits to a T

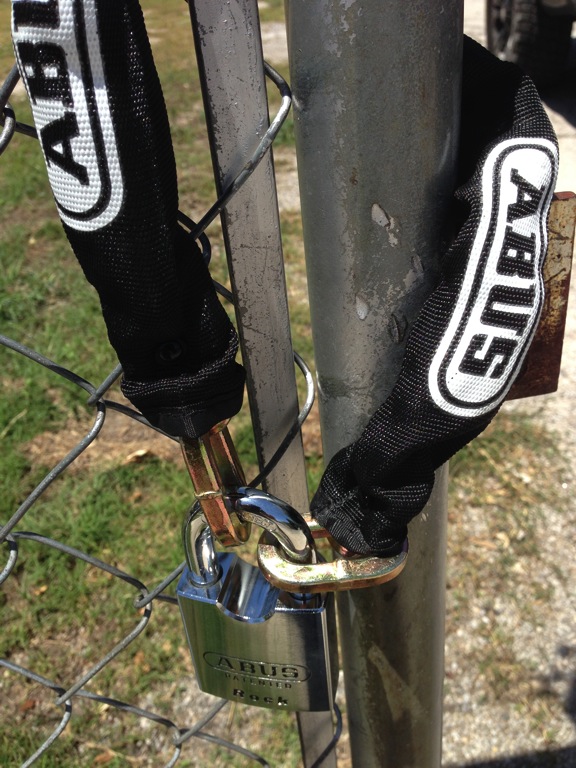

This quick project was about locking a gate with a unique setup. The easy solution was wrapping both sides of the gate with a strong chain and padlock. We selected Abus Padlocks with re-keyable Schlage lock cylinders.

20140516 142131 BE7f iPhone 5

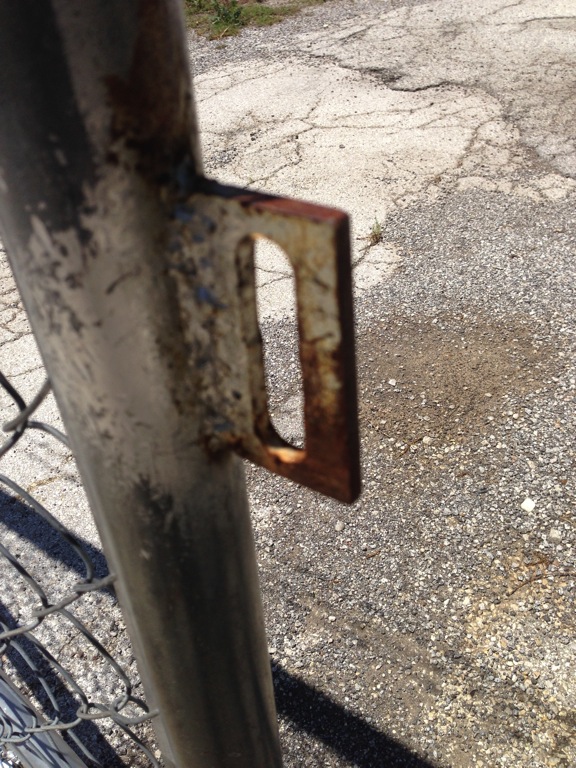

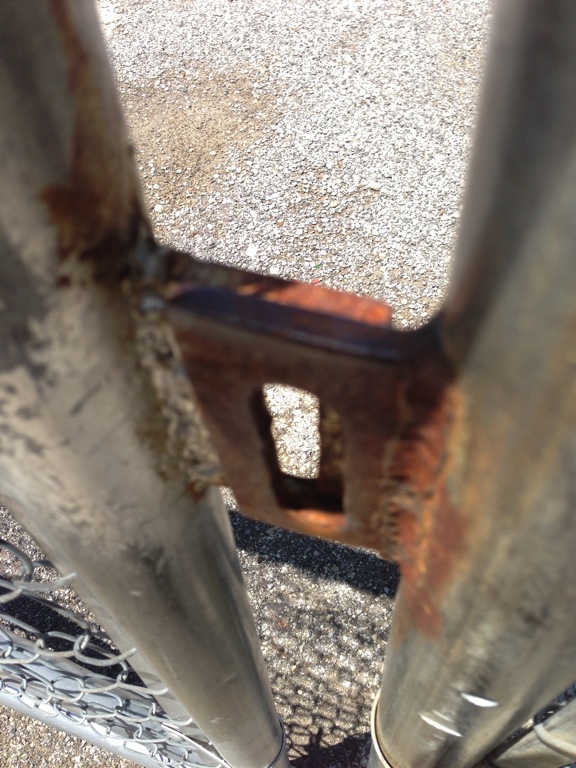

Looking more closely at the situation, the large rolling gates had metal plates welded to them that should be more useful.

20140516 142217 BE7f iPhone 5

20140516 142250 BE7f iPhone 5

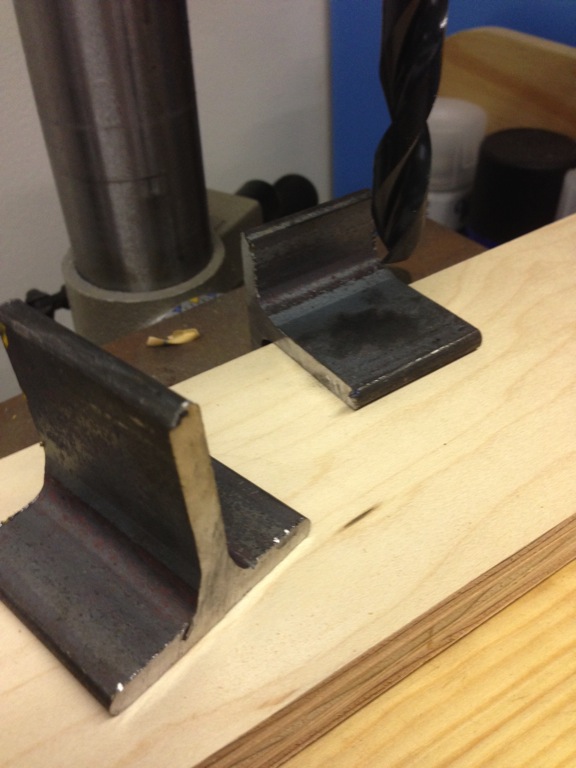

Our solution was finding some t-shaped steel bar, which exists and was ordered online cut to length. We don’t usually work with metal and lack tools for it.

20140516 110415 BE7f iPhone 5

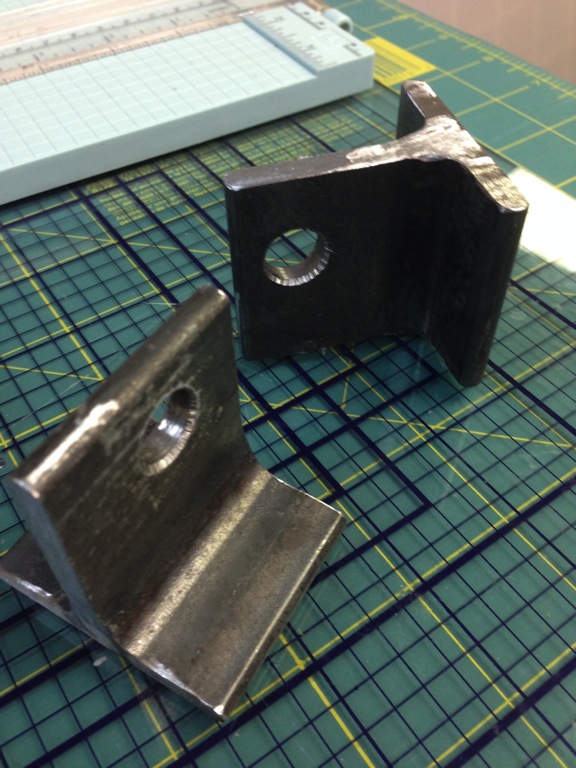

A drill press and 1/2” twist bit was used to bore the hole for the padlock shackle. Then we hit all the edges with a coarse Dremel sanding wheel to remove any burrs.

20140516 113604 BE7f iPhone 5

Here’s a test fit of the steel piece through the gate plates.

20140516 142333 BE7f iPhone 5

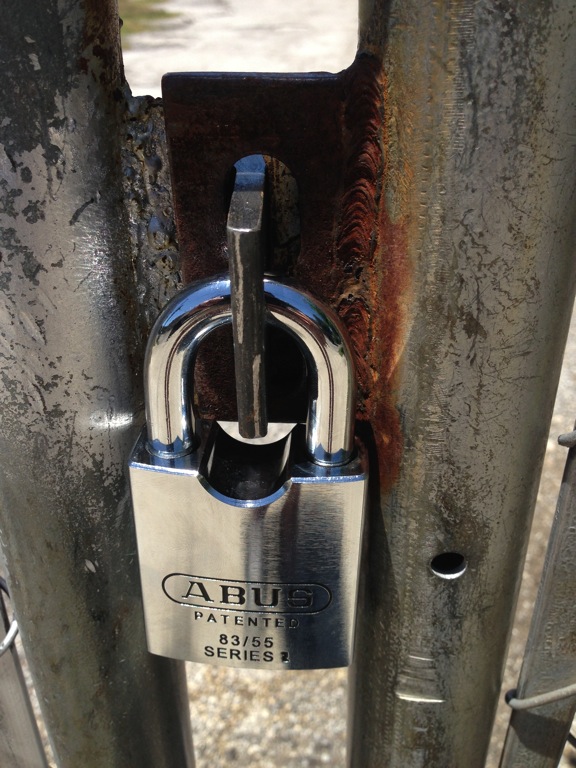

We flipped it around to the operating position and installed the padlock.

20140516 142357 BE7f iPhone 5

Results

Overall, the solution is very clean and we’re happy with this version. The fit makes using bolt cutters on the shackle awkward. They’d have to get through 1/4” cold-rolled steel with a grinding wheel to free the lock which is loud and throws showers of sparks.

Improvements

  1. The raw steel needs painted to protect it from the elements

  2. The t-bar should be secured to one side of the gate with a chain so we don’t lose it or drop it while working the gate.
