Grid Column v2.1 Assembled and Tested

To update the grid column we only needed to re-cut three parts but added a footer side panel and footer front panel with new access ports. After taking apart the v2.0 prototype, we swapped in the new parts and all the fits were good. Bottles were reinstalled. A test strand of 50 LEDs was wired into the first two columns of bottles. A power supply, PixelPusher 1, and a network cable were connected. A test pattern was run in Processing on a computer on the same network. The results are below.

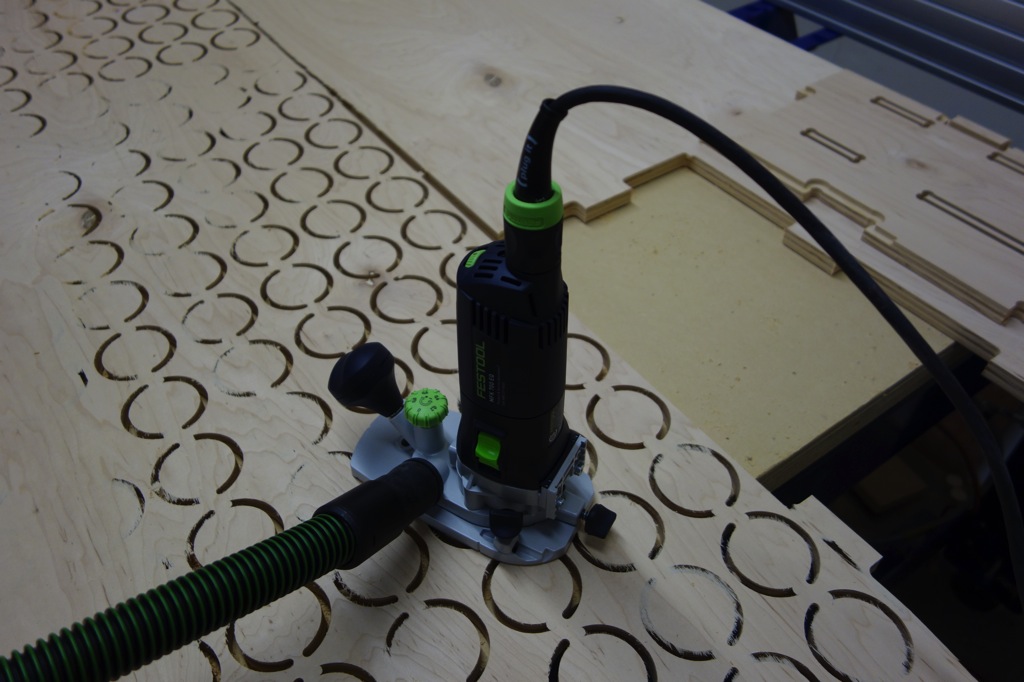

Festool MFK 700 to Remove Grid Slots

20140326 093943 BE7f DSC RX100

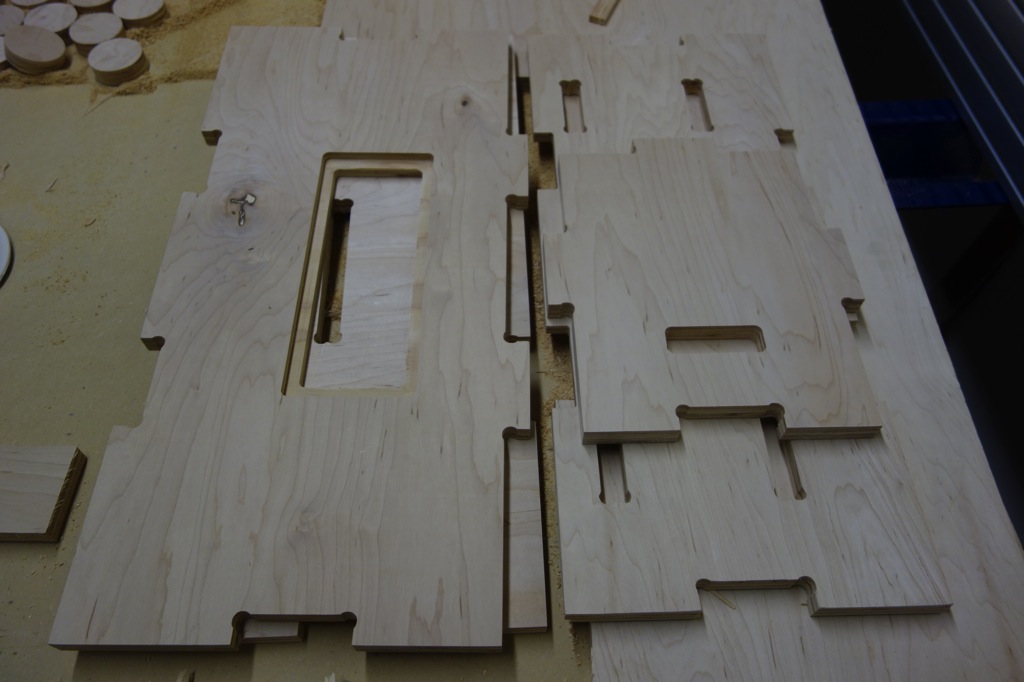

Updated Box Panels

20140326 104038 BE7f DSC RX100

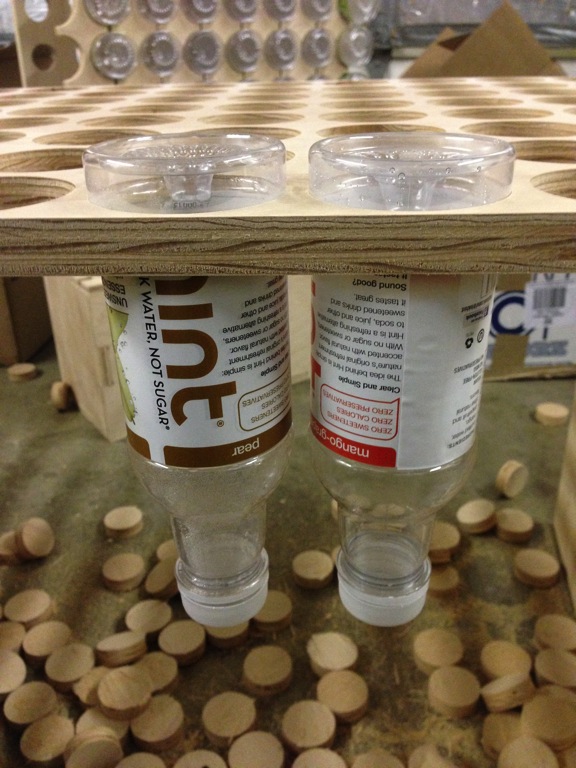

Testing Bottle Fit

20140326 123952 BE7f iPhone 5

20140326 135820 BE7f DSC RX100

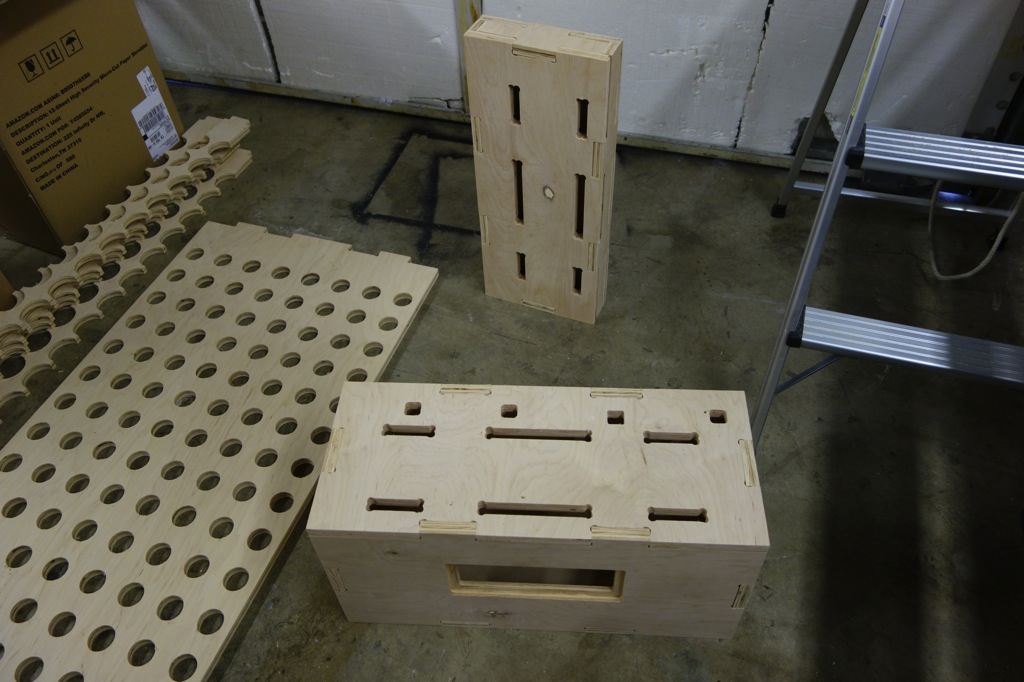

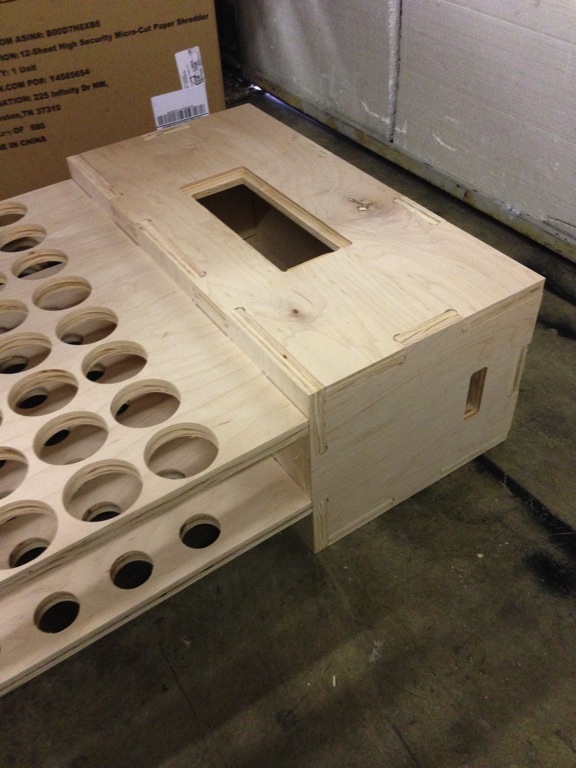

Boxes with Grid Planes

20140326 155558 BE7f iPhone 5

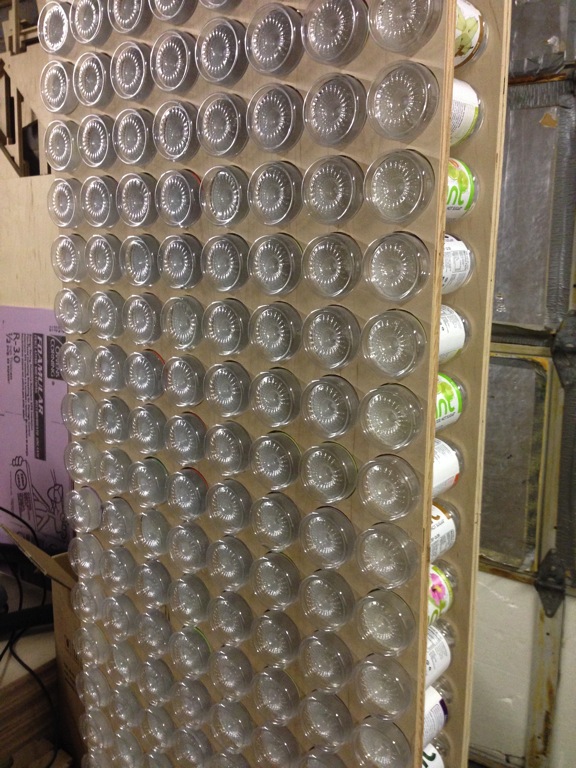

Bottles Installed in Grid (Front View)

20140326 161247 BE7f iPhone 5

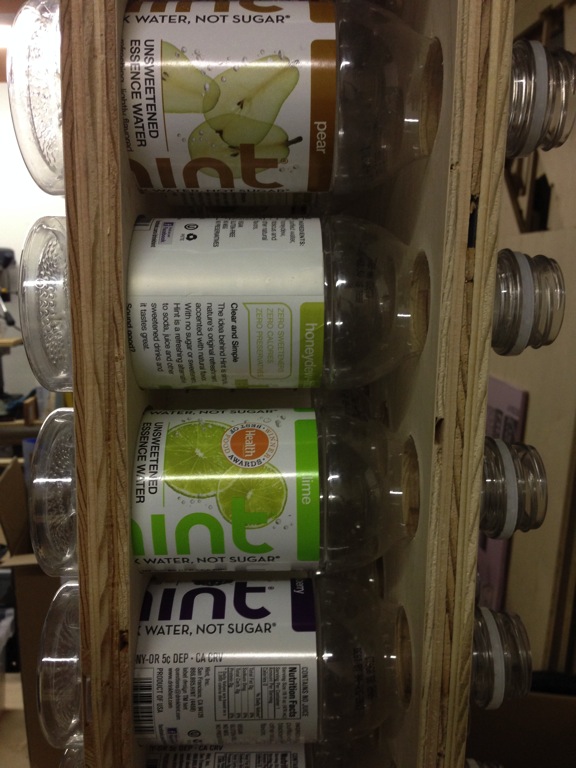

Bottles Installed in Grid (Side View)

20140326 161406 BE7f iPhone 5

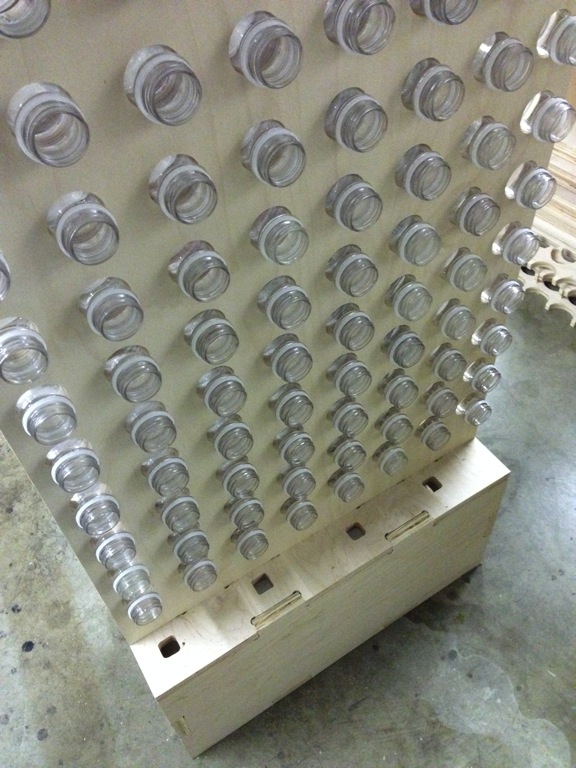

Bottles Installed in Grid (Rear View)

20140326 161357 BE7f iPhone 5

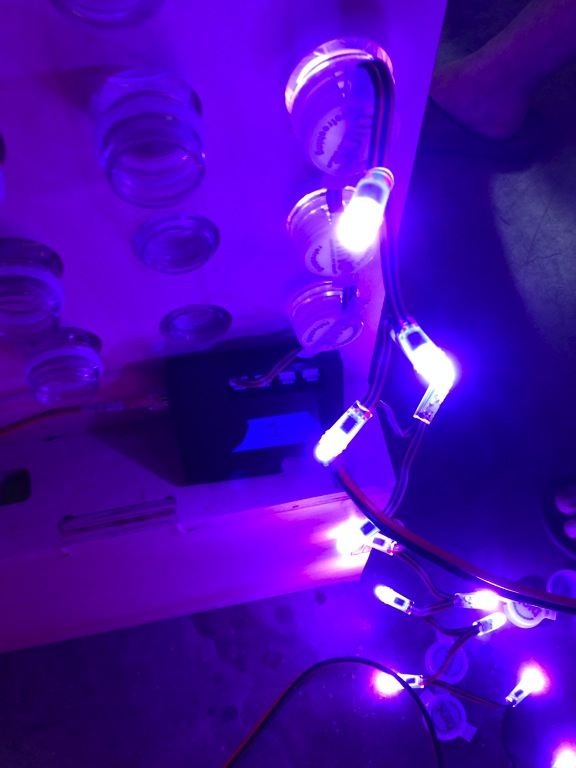

Testing Strand of LEDs

20140326 163456 BE7f iPhone 5

Wiring 2 Rows of Bottles

20140326 165807 BE7f iPhone 5

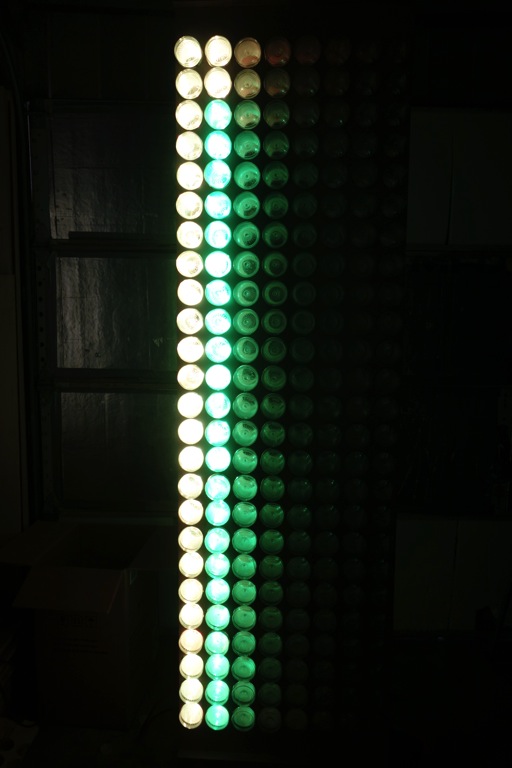

Test Pattern on 2 Rows

20140326 145523 BE7f DSC RX100

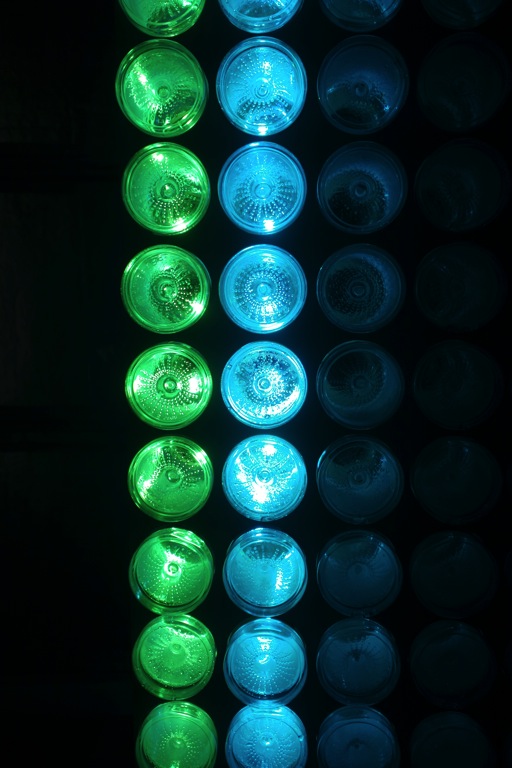

Closeup of Illuminated Bottles

20140326 145552 BE7f DSC RX100
